For Single |
| 1. Specifications of Diamond Endless Wire Saw M/C |
| 1-1. DEWS-0134S (Versatile 1 cutting device for Cropper & Squarer, etc.) |
 |
| Item |
DEWS-9640 |
DEWS-0134S |
Basic
specifi-
cations |
Max. height |
3200mm |
3000mm |
Installation
area |
2730×2100mm |
2730×2200mm |
Mechanical
load |
1,600kg |
7,000kg |
| Voltage |
AC 380V / 3P / 60Hz |
AC 380V / 3P / 60Hz |
Power
consumption |
8kW |
8kW |
Power
consumption |
5kg/cm2 |
5kg/cm2 |
| Noise |
70db |
70db |
| Travel |
Travel of
X-axis |
960mm |
1000mm |
Travel of
Z-axis |
400mm |
750mm |
Work
Table |
Size |
960×960mm |
1000×960mm |
| Rate road |
450kg |
700kg |
Tools
(Wire) |
Wire |
Diamond Endless Wire |
Diamond Endless Wire |
| Mash Size |
60# ~ 170# |
60# ~ 170# |
| Length |
4,605mm |
3,400mm |
| Thickness |
1.5Φ, 2Φ |
1.5Φ, 2Φ |
|
|
| |

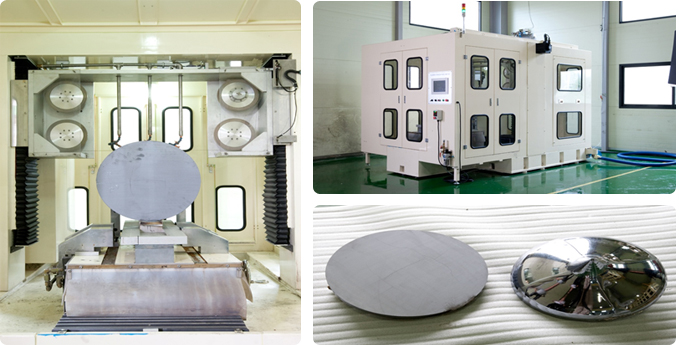

| DEWS-0134S (Single Si Cutting M/C) |
 |
|
| |
|
|
|
